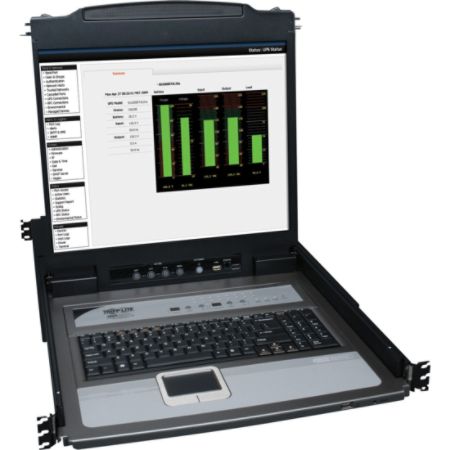

Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables, Steel Housing Item # 908743
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
Description
Tripp Lite's 16-port Console KVM Switch w/19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional B022-U16 16 port KVM switches. Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB only servers... no adapters needed. Also features an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and one for attachment of USB peripherals, such as a flash drive, external hard drive, etc.
Product Details
| Item # | 908743 |
| OfficeMax # | 23558213 |
| Manufacturer # | BV7238 |
| diagonal screen size | 19 inches |
| Screen Mode | SXGA |
| KVM Switch | Yes |
| height | 1.8in. |
| Certifications & Standards | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| width | 17in. |
| Product Line | NetDirector |
| package contents | NetDirector Console RM LCD KVM Switch; 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits; PS2/USB Combo Console Cable Kit; RJ11 to DB9 Firmware Upgrade Cable; C13 to 5-15P Power Cord; CD with Owner Manual; Quick Start Guide; Grounding Wire; Rackmount Hardware Kit |
| depth | 27" |
| Product Name | NetDirector B020-U16-19-K Rackmount LCD with KVM |
| manufacturer | Tripp Lite |
| weight | 31.30 lb |
| brand name | Tripp Lite |
| USB | Yes |
| Number of USB Ports | 2 |
| Number of Computers Supported | 16 |
| Max Cascading Depth | 512 |
| Pointing Device Type | TouchPad |
| screen resolution | 1280 x 1024 |
| warranty length | 1-year limited |
| model name | B020-U16-19-K |
| Show More ▾ |
Customer Reviews
Rated 5 out of 5�by 1
reviewer.
Rated 5 out of 5�by TandyBrands Works Great
This is the second unit I have purchased over the last several years. The 19" screen makes it very nice. The unit is sturdy, easy to install, and easy to use. The cables are clean, molded into one connector at the KVM Switch end, and breaks out on the other end with VGA, USB, and PS2 connectors (for those older machines/servers out there). Note, the unit comes with eight (8) of the 16 cables, all six feet long. This works out nice for me as I then ordered up the next eight cables as 10' long for those distant end servers withibn the rack. They do offer a 15 length cable as well. Overall, this is a solid product and would definately recommend. NOTE: I'd like to get the out-of-band module, The B051-000, but the reviews on this website from other users would seem that this product has not matured yet to warrant that.
January 26, 2012
